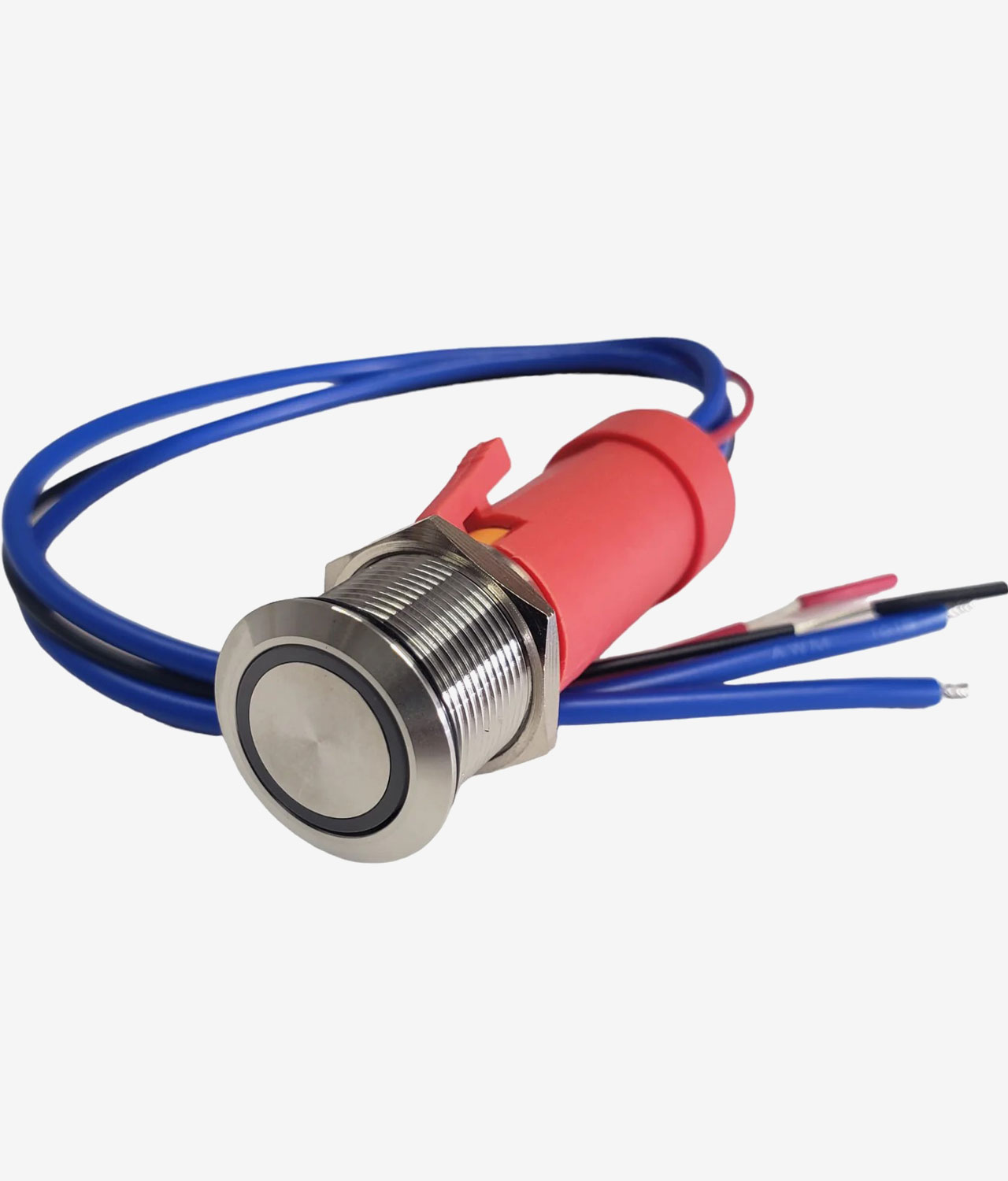

19 mm (3/4″) Marine Grade Waterproof Maintained Push Button Switch
Upgrade your boat’s dash or control panel with a rugged maintained marine-grade push button switch designed for harsh saltwater conditions. Built from durable 316 stainless steel and fully sealed to an IP67 waterproof rating, this 19 mm LED switch is engineered to deliver reliable, repeatable maintained activation—ideal for lights, electronics, accessory power, bilge systems, and any function that requires a steady ON/OFF toggle rather than a push-and-hold input.
This switch is used in Liquid Revolutions race boats combining modern style with dependable performance. The Blue LED ring illumination offers excellent visibility at night, while the included plug-and-play locking 4-wire removable harness simplifies installation and maintenance in tight marine dashboards. With a 12 V DC / 20 A rating, it’s capable of handling most accessories directly, and can be paired with a relay for high-amp components.
Key Features & Benefits:
- Marine-Grade 316 Stainless Steel – Corrosion-resistant housing built to withstand UV, vibration, salt spray, and years of marine use.
- IP67 Waterproof Protection – Fully sealed against dust, rain, washdown spray and temporary submersion—ideal for exposed helm installations
- True Momentary Operation – Perfect for trim/tilt, starter circuits, horn buttons, and other systems requiring push-and-release control.
- LED Ring Illumination (Blue) – Provides high visibility in dark conditions while adding a clean, modern look to your dash.
- 12 V DC / 20 A Rating – Run most accessories directly or use as a relay trigger for high-current loads.
- Standard 19 mm / ¾″ Mounting Size – Easily replaces existing round switches from brands like Bocatech or Bluewater.
- Locking Wire Harness – Secure, vibration-resistant locking connector ensures the harness stays firmly in place on the switch even in rough water or high-speed conditions
Specification
- Positions: On/Off
- Switch Action: Maintained (Stays Switched)
- No of Terminals: 2 Wire (plus 2 wires for LED Light Ring)
- Max Voltage: 12V DC
- Max Amperage: 20A
- Mounting Size: 19mm (3/4″)
- Mounting Hardware: Included
- Rating: IP64 (Totally sealed against dust, spray and temporary submersion)
- Typical Race Boat Use: Main Power, Electronics, Bilge Pumps
